How small can conductor tracks and spacing be?
This depends primarily on whether the layer is on the inner or outer side and on the copper base. For a thickness of 35 µm, the partner specifies 100/100 µm for the inner side and 127/160 µm for the outer side as the standard for series production. EVYTRA recommends allowing for a greater margin.

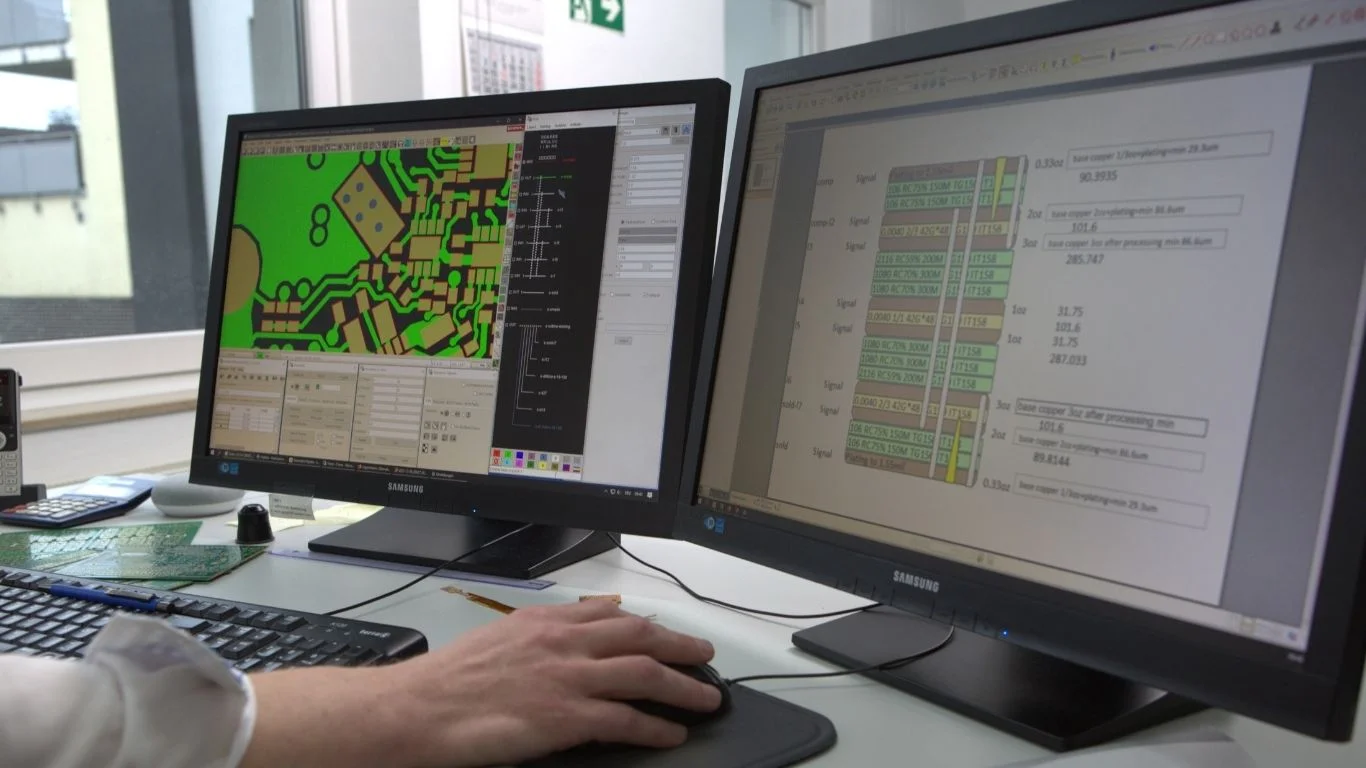

Why is CAM verification important?
Die CAM-Verifizierung ergänzt die technische Datenprüfung durch den Blick erfahrener Spezialisten. Sie hilft, Gerber-Daten auf Fertigbarkeit, Plausibilität und Eindeutigkeit zu bewerten.
How many layers are possible?
2 to 24 layers are specified as the standard for series production, with up to 32 layers indicated as the technological limit. The stack-up and material availability must be approved.
What is the most suitable microvia size?
Laser microvias ranging from 0.10 to 0.20 mm are specified; 0.125 to 0.15 mm and a microvia aspect ratio of up to 1:1 are robust starting points.
What data does a PCB manufacturer need?
Unambiguous data on layer, drilling, contour, stack-up, material, surface, impedance and tolerance, including revision and acceptance criteria.
What is a realistic impedance tolerance?
The tolerance of ±10 per cent applies to both single-ended and differential impedance. Tighter tolerances require separate validation.
